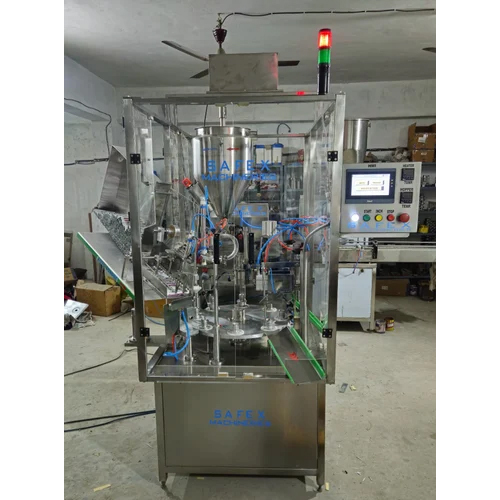

Double Head Automatic Rotary Tube Filling and Sealing Machine

Product Description

Application:

Our Machine suitable for Pharmaceuticals, Dairy, pesticides, Distilleries & Breweries, Cosmetics & Toiletries, Lube & Edible Oil, Food & Ancillaries Industries etc.

Description

SAFEX MACHINERIES make fully automatic Double Head Rotary tube is versatile Tube Filling, Sealing & Coding Machine complete with orientation device for the positioning of the tube.

Technical Specification

• Model No:SBTFS-80A
• Speed:80 to 120 tubes /min filling capacity
• Volume:5 ml to 250 ml.
• Tube Size dia:15 min to 60 max.
• Tube Size length:80L min to 200L max.
• Power Consumption:3-4KW. Max
• Size of Machine:1500 W X 2100 L X 3100 H
• Net Weight:1800 Kg. (Approx)
• Gross Weight:2000 Kg. (Approx)

 Design confirms to GMP Norms.Salient Features:

• Contact parts of SS 316.
• All operation is fully automatic.
• Sturdy & compact design.
• Tube holders of Nylons.
• Pump unit in Stainless Steel for filling volume choose alternatively one
  (1) 5ml to 40 ml
  (2) 40 ml to 150 ml
  (3) 150 ml to 250 ml

• Relay Electrical Control Systems.
• Operating panel with START, STOP & INCH.
• 40-50 liters container acid proof.
• No tube No fill mechanism.
• Blow off for connection to local comp. air supply.
• Motor for variable speed.
• Auto Loader of Tubes.
• Hinged Cassette Tube in feed system.
• All moving parts are guarded and enclosed.
• Photo-Electric Print Registration.
• Protection Guards.
• One set of tools.
• One set of first aid spares.

Optional Attachment:

• Filling nozzle
• (1) 5ml to 40ml
  (2) 40ml 100ml
  (3) 100ml-250ml.
• Stirrer in S.S. hopper

• Jacketed SS hopper, having heat control arrangement with thermostat to maintain the desired temperature.
• Attachment for cleaning of tubes by vacuum system.
• Complete extra pump unit in Stainless Steel.
• Acid proof with pipe connection
• Heater & Temp. Controller.
• Set of Tube holder for diff. dia of tube.
• Vacuum Cleaning Device by compressed air supply.

Sealing & Coding Methods

CAU- 45M

• Beam with folding stations for metal tubes
• Closure type 1
• Coding device for one side coding with 10 figures.

CAU 45 P

• Heat Sealing Unit
• P/1  Comprising
• Straight rifles
• BOblique rifles
• C Plain

• Temperature regulator for heating element.
• Mechanical lifting of heating element
• Device for coding one side with 10 digits with trimming of blades.
