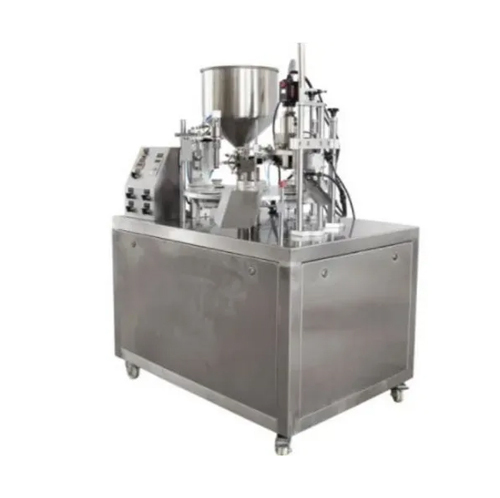

Tube Filling Machine

About Tube Filling Machine

SAFEX Automatic Tube Filling Machine is specially designed for filling as well as sealing of plastic and shielded tubes. Our machine is provided with the reliable blow off devices and tail cutting arrangements. The crucial advantages of this machine are high productivity, low energy consumption, simple and safe operation, low cost, strong stability and easy maintenance. The machine offers automatic warning (Audio-visual Alarm Annunciation System) on failure or abnormal function.

The plant is set to auto tube feed operation with Solid state no tube no fill device mechanism to avoid wastage. The in-built mechanisms perform various processes such as Tube washing (pneumatic) and feeding marking identification, filling, folding, sealing, code printing and finished product output.

 Some of the improved features include Tube orientation device incorporating photo sensors, stepper motor and controller, Cassette in-feed device incorporating vacuum tilter for automatic loading of tubes, Automatic cream level sensing device, Inert gas injection device before or after filling etc. Our machine is Suitable to fill 0.5hm-300gm of Ointments, Liquids, Pastes, etc.

Technical Specification

• No of Phase:3
• Voltage:440 v
• Country of Origin:Made in India
• Automation Grade:Automatic
• Capacity:40-60 Tube Per/Min
• Material:Stainless Steel
• Usage/Application:Pharma
• Brand:SAFEX

 Salient features :

• Automatic Tube Loading System.
• Auto Tube Orientation.
• No Tube No Fill System.
• Folding & Coding at Individual Station.
• Simple Mechanism & Operator Friendly Machine.
• Combo Model Suitable For Both Aluminium and Laminated/Plastic Tubes.
• Out Put 40 to 60 Tubes Min  For Single Head M/c.
• Gmp model
• Plc model(optional)

Technical Specification:

• Filling Range 3 Gm To 250 Gm With Change Over.
• Tube Dia Up to 60 mm

Power Consumption:

• Max. 5Kw
• Air Consumption 15CFM @ 6 Kg/cm2
• Chilled Water Consumption LPM @ 10c
